Description

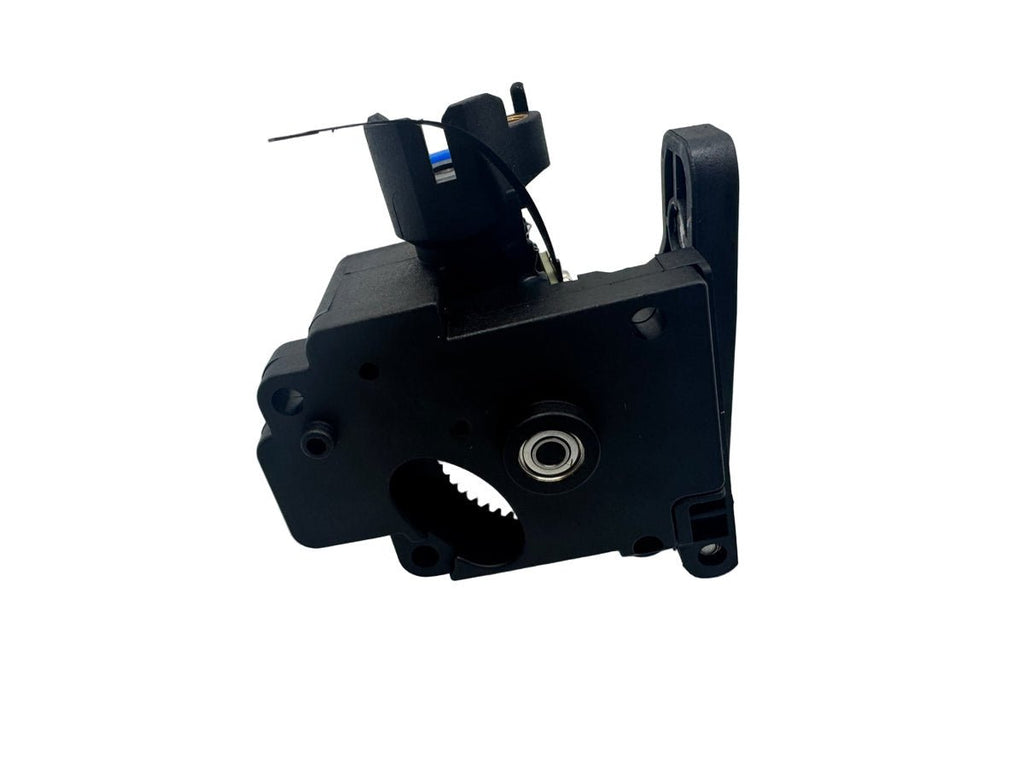

OEM Extruder Assembly for Flashforge AD5X

This is the complete OEM extruder assembly for the Flashforge AD5X — a pre-assembled drop-in replacement that includes the drive gear, motor housing, filament guide, and mounting hardware. Rather than diagnosing and replacing individual extruder components, this unit swaps in as a complete assembly for a faster, simpler fix.

The AD5X’s dual-gear direct drive extruder handles PLA, PETG, ABS, ASA, TPU, and other common filaments. When the drive gears wear, tension mechanism loosens, or motor performance degrades, print quality suffers — inconsistent extrusion, filament slipping, clicking, and failed multi-colour prints. Replacing the entire assembly restores factory-fresh feeding performance.

When to Replace

Filament slipping or grinding marks on the filament surface, clicking sounds from the extruder during printing, inconsistent extrusion or intermittent under-extrusion, failed filament loading or unloading from the 4-in-1 feeder system, poor retraction performance causing stringing, and visible wear or damage to the drive gears or tension mechanism.

Compatibility

This extruder assembly is designed for the Flashforge AD5X. It is also compatible with the Flashforge Adventurer 5M. Not compatible with the Adventurer 5M Pro, AD4, AD3, or other Flashforge models.

Installation

Power off the printer and allow it to cool completely. Remove the existing extruder assembly from the toolhead, clean any filament residue from the filament path, and mount the replacement. After installation, run a filament tension calibration, re-level the bed if necessary, and test feed at moderate speed before starting a print. Flashforge provides a video guide for the full disassembly and reassembly process on their Wiki.

AD5X V2 owners: You will need to transfer the filament sensor connector from your original extruder and install it onto this replacement extruder before mounting.

What’s Included

Flashforge AD5X extruder assembly × 1 (complete module — drive gear, motor housing, filament guide, mounting hardware)
