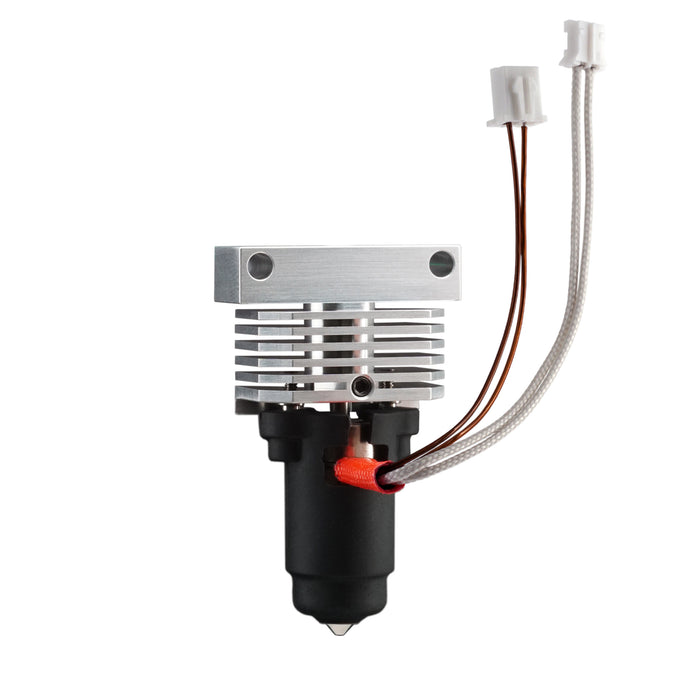

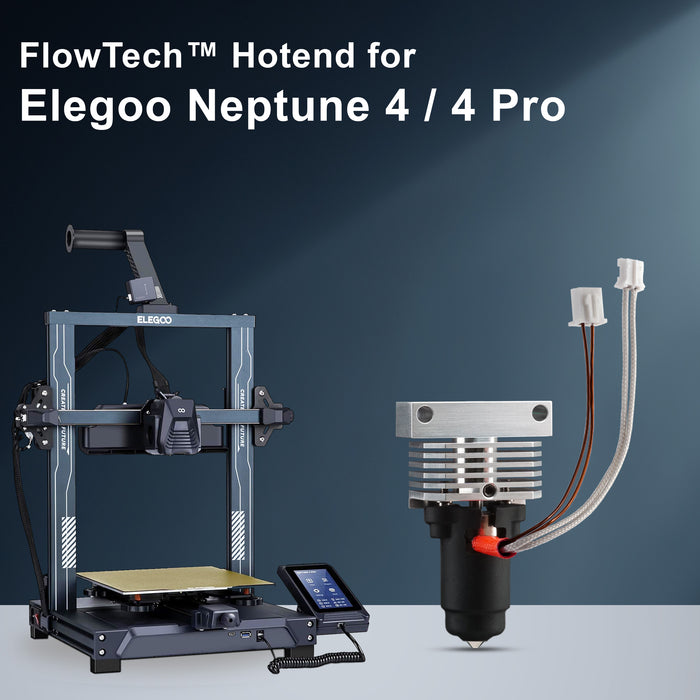

Micro Swiss FlowTech™ Hotend for Elegoo Neptune 4 / 4 Pro

Description

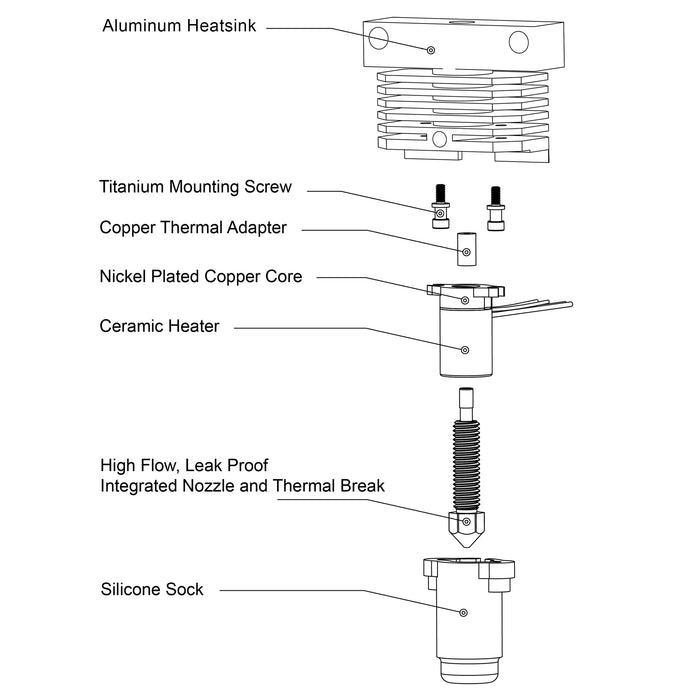

• Leak-Proof Nozzle:
  Tired of messy nozzle leaks that ruin your prints and waste filament? FlowTech Hotend combines nozzle and thermal break into one permanently sealed assembly that ensures a leak-proof hotend.
• Cold Nozzle Change:
  Swapping out nozzles used to be a time-consuming and potentially hazardous task. With a FlowTech Hotend, nozzle changes are effortless, and there’s no need for hot tightening, and you can do it with just one hand.
• High-Flow Characteristics:
  Ceramic cylindrical heater and 28.6mm melt zone provides excellent volumetric flow rate.
• All-Metal Design:
  Built to last! FlowTech hotend features an all-metal design that can handle most modern 3D printing filaments. The entire hotend is machined and assembled in-house, with quality control performed at multiple stages during the manufacturing process. At the end, each hotend undergoes a full thermal cycling test before it is packaged.
• 300°C Max Temperature:
  This hotend is rated at 300°C temperature with a properly tuned NTC thermistor for each specific printer. This particular edition is perfectly tuned for Elegoo Neptune 4 / 4 Pro so no firmware changes are needed.

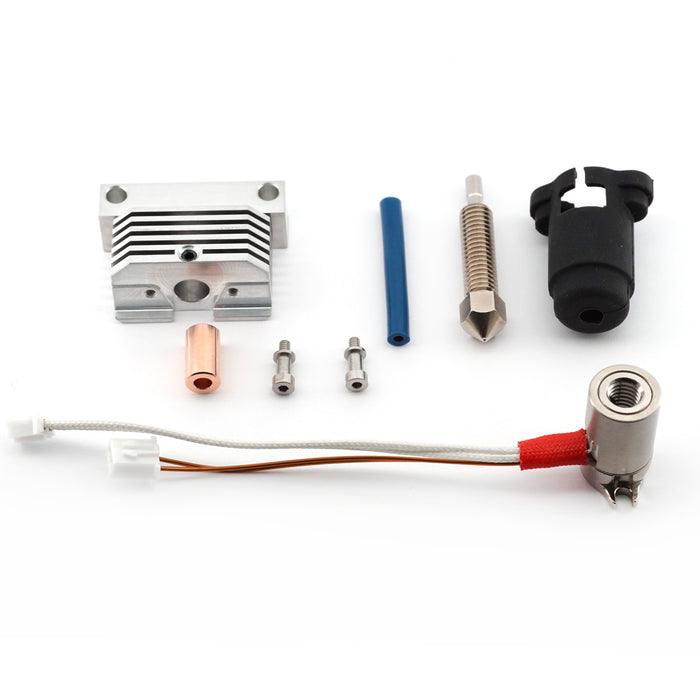

What’s in the box

• 1x FlowTech™ Heater Core (24V – 60W)
• 1x Copper Thermal Adapter
• 2x Titanium Mounting Screws
• 1x FlowTech™ Brass Plated 0.4mm Nozzle
• 1x Heatsink
• 1x 30mm PTFE Liner
• 1x Silicon Sock

Installation Instructions

• Installation Instructions – PDF
• Volumetric Flow Rate Analysis
