Description

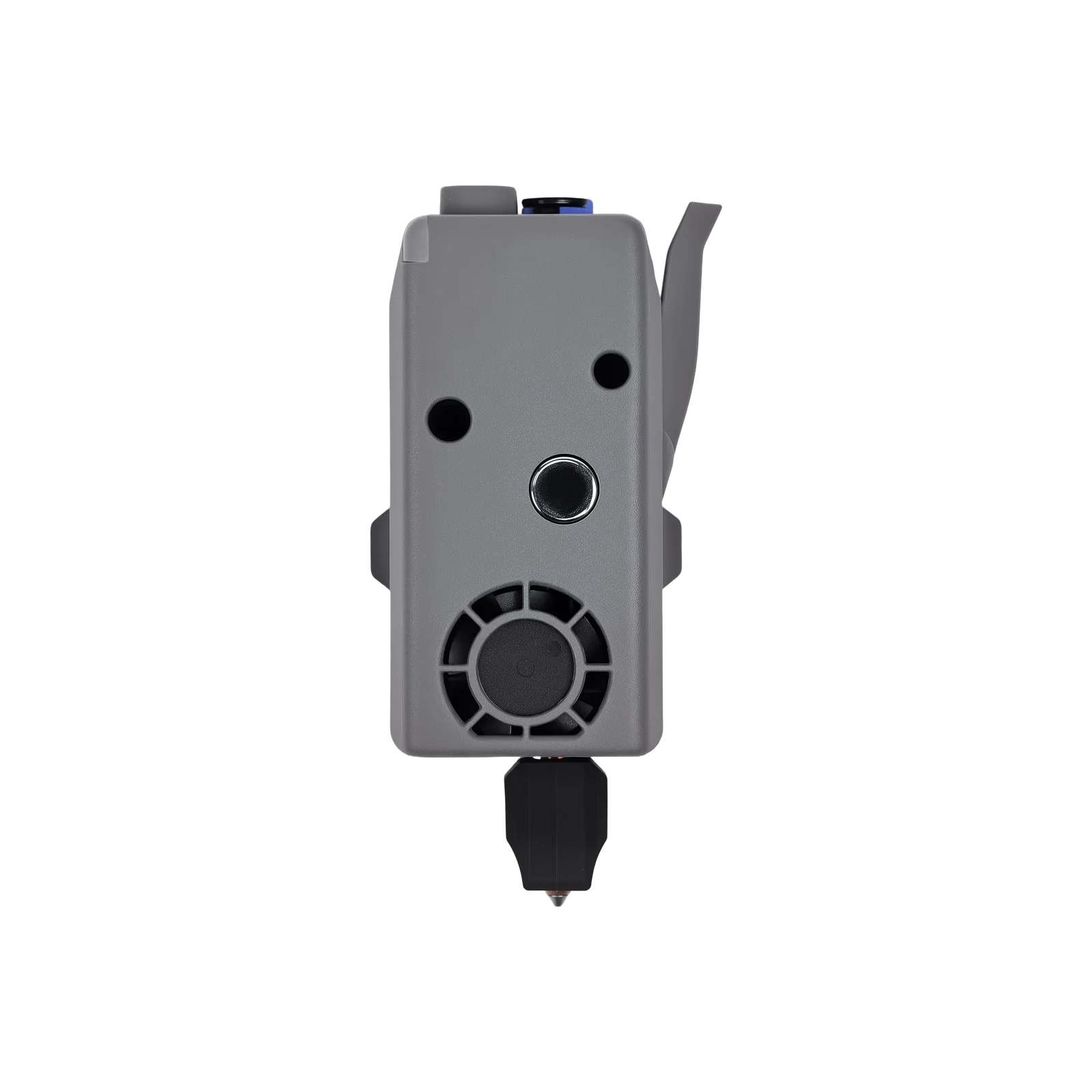

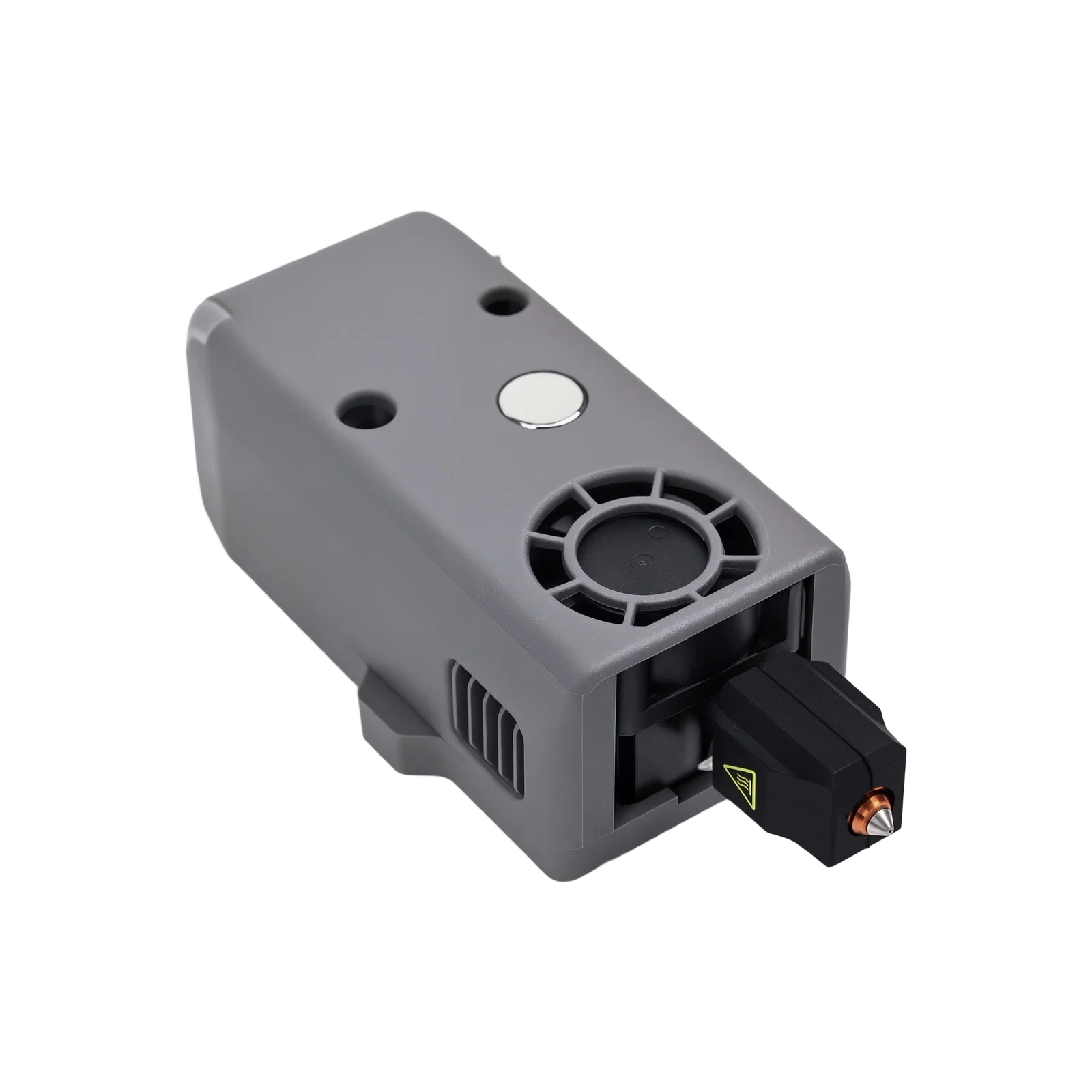

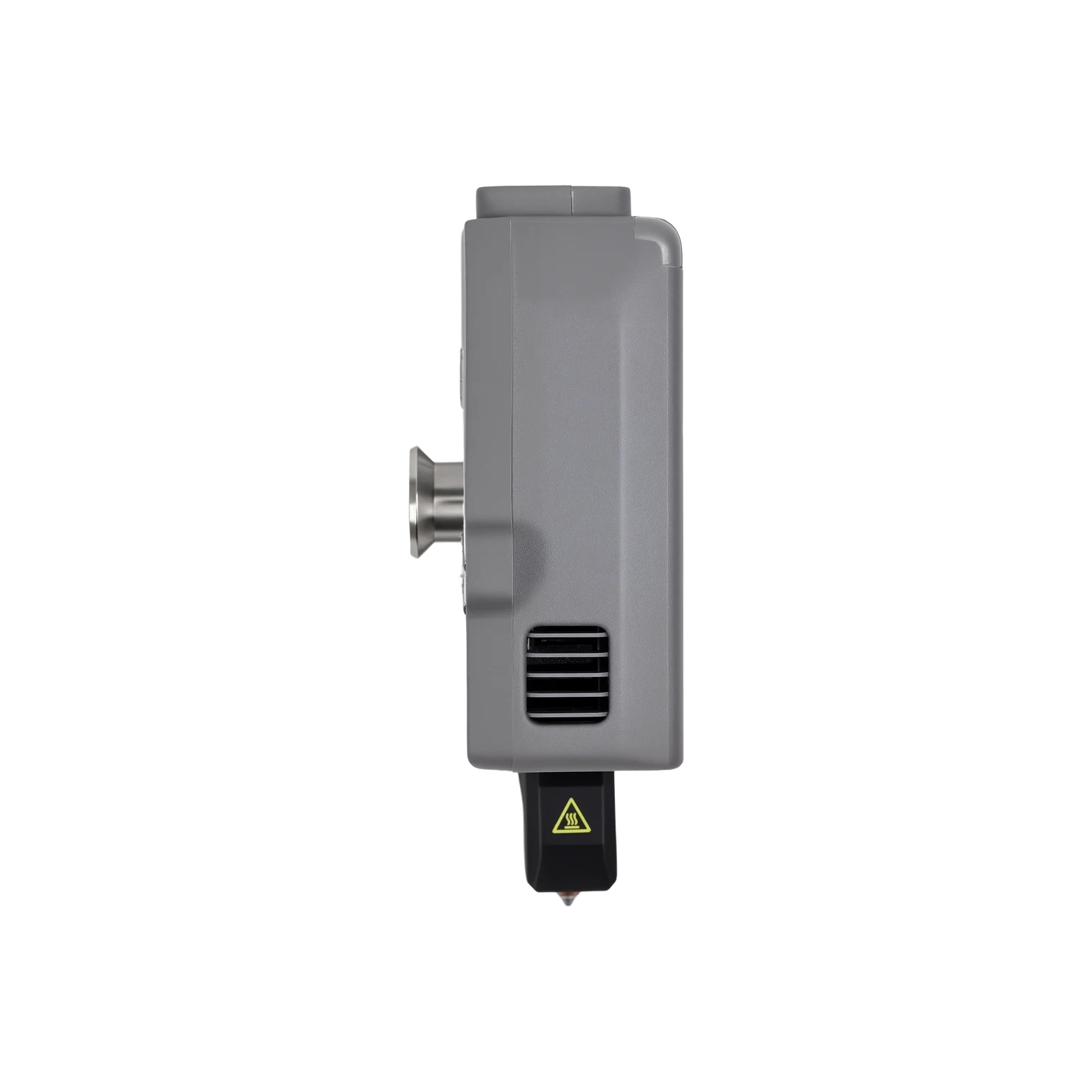

Flashforge Extruder Assembly for Creator 5 Series

This is the genuine Flashforge extruder assembly for the Creator 5 and Creator 5 Pro — a complete replacement component that restores reliable filament feeding and extrusion performance when a toolhead starts underperforming. Rather than diagnosing individual gear or motor faults, this assembly swaps in as a complete unit for a faster, more reliable fix.

Complete Extruder — Not Just a Gear

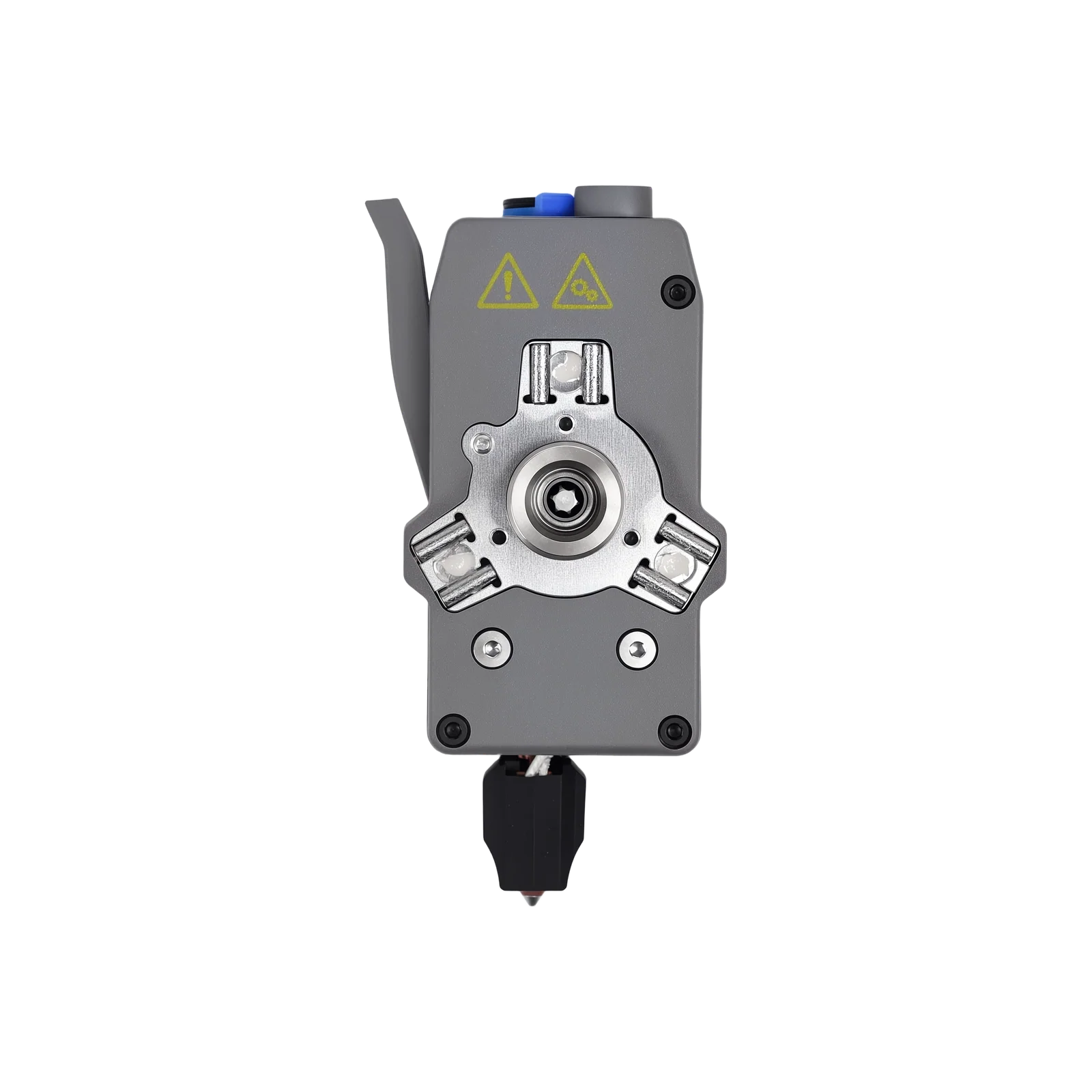

The Creator 5’s FlashSwap toolhead system relies on consistent, precise filament feeding to keep multi-toolhead swapping and high-speed printing reliable. This assembly replaces the full extruder mechanism — feeding motor, drive gear, and grip components — as a single unit, restoring factory-fresh feeding performance without needing to isolate which individual part has worn out.

When to Replace

Filament slipping or grinding marks appearing on the filament surface, clicking or grinding noises from the extruder during printing, inconsistent extrusion despite correct settings and dry filament, reduced grip force causing under-extrusion, and visible wear or mechanical damage to the extruder mechanism after extended use or heavy filament volume.

These symptoms typically develop gradually over hundreds of print hours as gear teeth and grip surfaces wear from repeated engagement.

Compatibility

Flashforge Creator 5
Flashforge Creator 5 Pro

Not compatible with the AD5X, AD5M, AD5M Pro, or other Flashforge models — those printers use different extruder assemblies designed for their respective toolhead systems.

Installation

Power off the printer and allow the toolhead to cool completely before beginning replacement. Remove the affected toolhead from the FlashSwap system, disconnect the existing extruder assembly, install the replacement, and reconnect. Refer to the official Flashforge Wiki for the Creator 5 series for the complete step-by-step disassembly and reassembly guide.

Warranty

Flashforge extruder parts are covered by a 3-month warranty from the manufacturer, separate to the printer’s standard 1-year limited warranty.

What’s Included

Extruder Assembly × 1 (complete unit for Creator 5 / Creator 5 Pro)
