Description

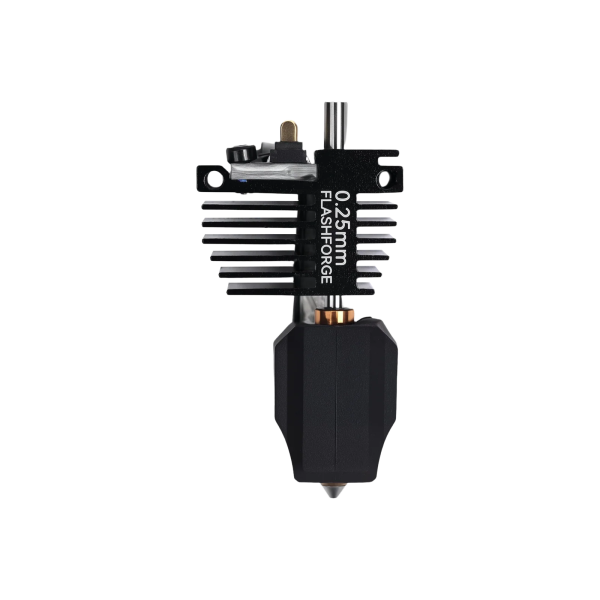

Flashforge Nozzle Assembly for Creator 5 Series

This is the genuine Flashforge nozzle assembly for the Creator 5 and Creator 5 Pro’s FlashSwap toolheads, rated to 320°C and constructed from hardened steel for reliable performance across standard and abrasive filaments alike. Whether you’re replacing a worn nozzle or switching sizes for a different job, this assembly is a direct-fit part designed specifically for the Creator 5 platform’s direct-drive toolhead system.

320°C Hardened Steel Construction

Rated to 320°C, this nozzle assembly handles the full range of standard filaments and reaches into higher-temperature territory needed for some engineering materials. The hardened steel build resists the abrasive wear that carbon fibre, glass fibre, and other particle-loaded filaments inflict on standard brass nozzles, maintaining a precise bore over significantly more print hours.

Available Sizes

0.25mm

Fine details and higher precision — ideal for miniatures, intricate models, and high-resolution work.

0.4mm

Versatile everyday printing — the standard all-rounder for balanced detail and speed across most jobs.

0.6mm

Faster printing and functional parts — higher throughput with reduced clogging risk on abrasive filaments.

0.8mm

High-flow printing for larger models — maximum speed and material throughput for structural parts and draft prototypes.

Quick-Swap Toolhead Design

The Creator 5’s FlashSwap system is built around fast, tool-minimal toolhead changes — this nozzle assembly is designed to fit that same quick-swap philosophy, minimising downtime whether you’re servicing a single toolhead or switching nozzle sizes across the printer’s multi-toolhead setup.

Silicone Sleeve — Don’t Skip It

The nozzle assembly is designed to be used with the silicone sleeve fitted over it. Without the sleeve, the component cooling fan can overcool the hotend, causing temperature fluctuations, print instability, and potentially triggering an abnormal temperature warning on the printer. Always ensure the sleeve is correctly refitted after any nozzle swap.

Compatibility

Flashforge Creator 5
Flashforge Creator 5 Pro

Not compatible with the AD5X, AD5M/AD5M Pro, or other Flashforge models — those printers use different nozzle assembly designs.

Installation

Power off the printer and allow the toolhead to cool completely before removing the existing nozzle assembly. Fit the replacement, ensuring the silicone sleeve is correctly reinstalled over the nozzle. Refer to the official Flashforge Wiki for the Creator 5 series for the complete step-by-step guide.

Specifications

Material: Hardened steel
Max temperature: 320°C
Available sizes: 0.25mm, 0.4mm, 0.6mm, 0.8mm
Filament diameter: 1.75mm
Compatibility: Flashforge Creator 5 / Creator 5 Pro
