$59.99
✅ Full-Metal Hotend with EndCoat™ Coated Heat Break
✅ Fixes QIDI Plus4’s Known Heatbreak Spacer Weakness
✅ Up to 30 mm³/s Flow — 20% Faster Printing
✅ Unlocks the Full V6 Nozzle Ecosystem
✅ Temperature Support Up to 370°C
✅ Drop-In Fit — No Modifications Needed
✅ All Stocked in South Australia

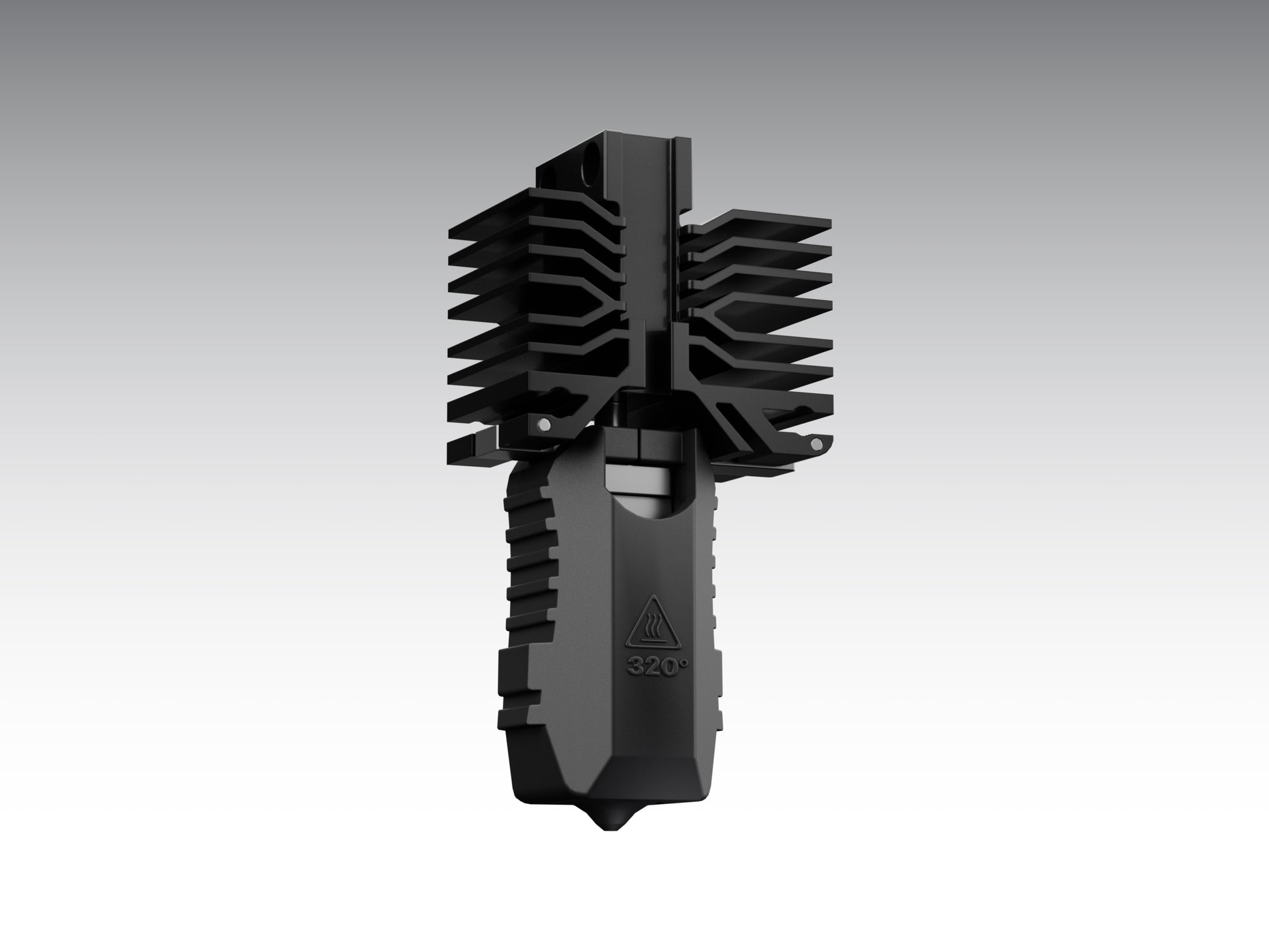

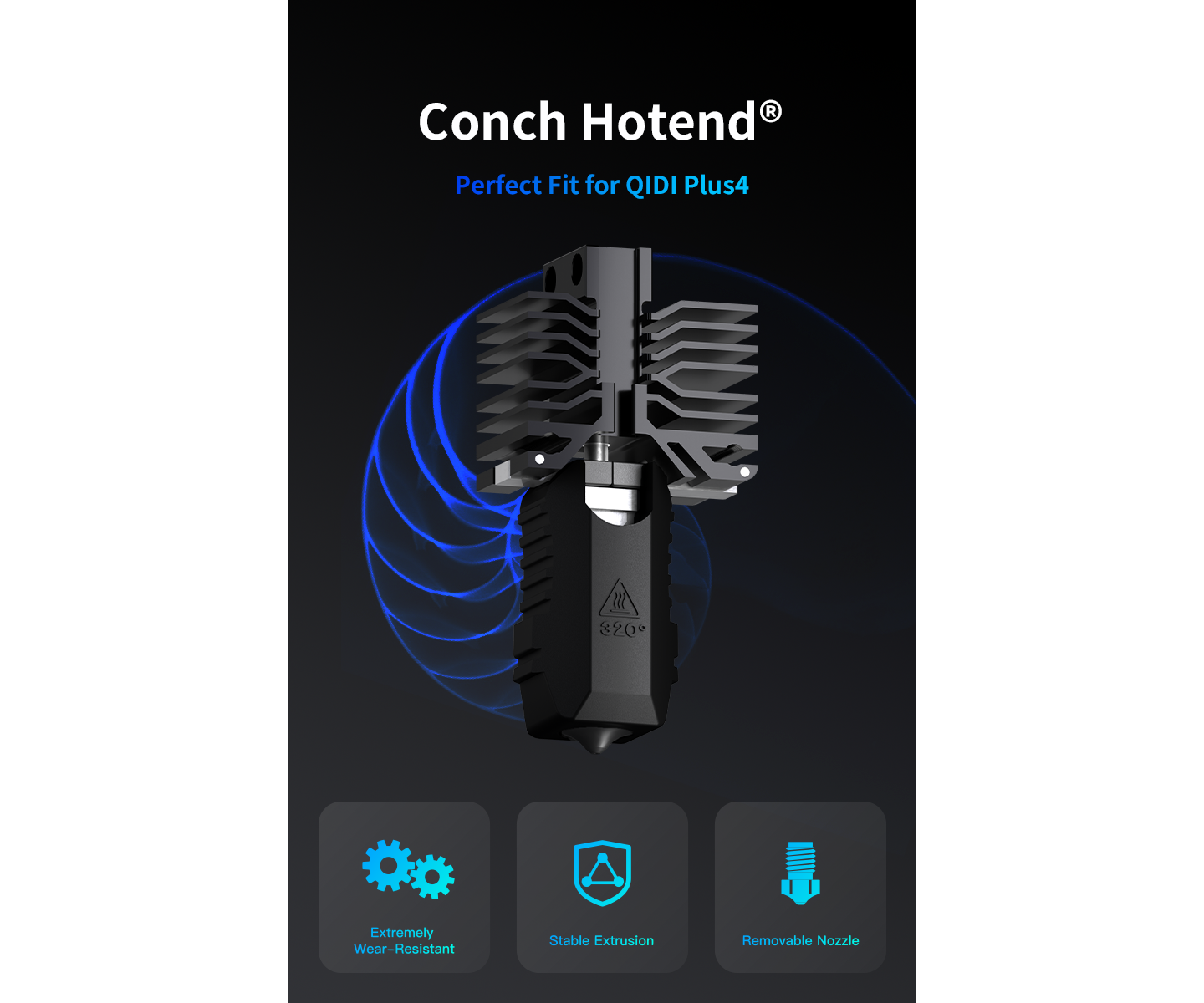

The QIDI Plus4 is a genuinely capable printer, but its stock hotend has one well-known weakness — the heatbreak spacer is prone to failure, often forcing a full hotend replacement just to get printing again. The Phaetus Conch Hotend solves this at the source with a robust full-metal design, EndCoat™ coated heat break, and a patented rigid kinematic coupling system, while opening up the entire E3D V6 nozzle ecosystem for the first time on this printer.
This isn’t just a repair part — it’s a genuine upgrade in flow rate, durability, and long-term reliability.
The Conch replaces the failure-prone stock heatbreak spacer design entirely with a full-metal, EndCoat™ coated heat break — engineered specifically to eliminate the reliability issue that plagues the original hotend. If you’ve already experienced a heatbreak failure on your Plus4, or want to avoid one altogether, this is the fix.

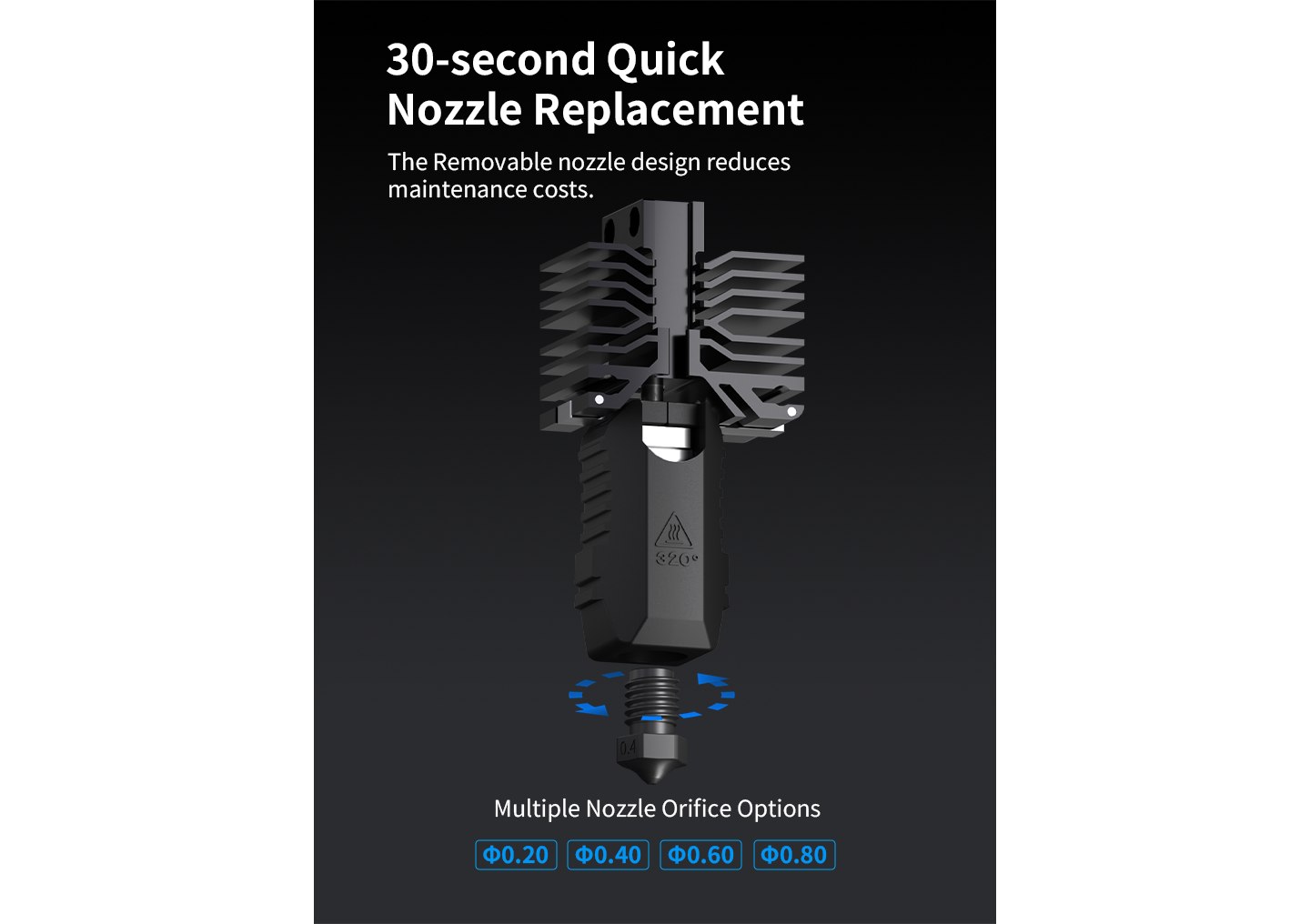

Because the Conch uses the standard E3D V6 nozzle interface, it opens up every nozzle option in that massive ecosystem — standard hardened steel, EndCoat™ coated hardened steel, and premium silicon carbide (SiC) nozzles all become available for your Plus4, rather than being locked into QIDI’s proprietary nozzle format. Nozzles are also individually replaceable — when a nozzle wears out, you swap just the nozzle, not the entire hotend.

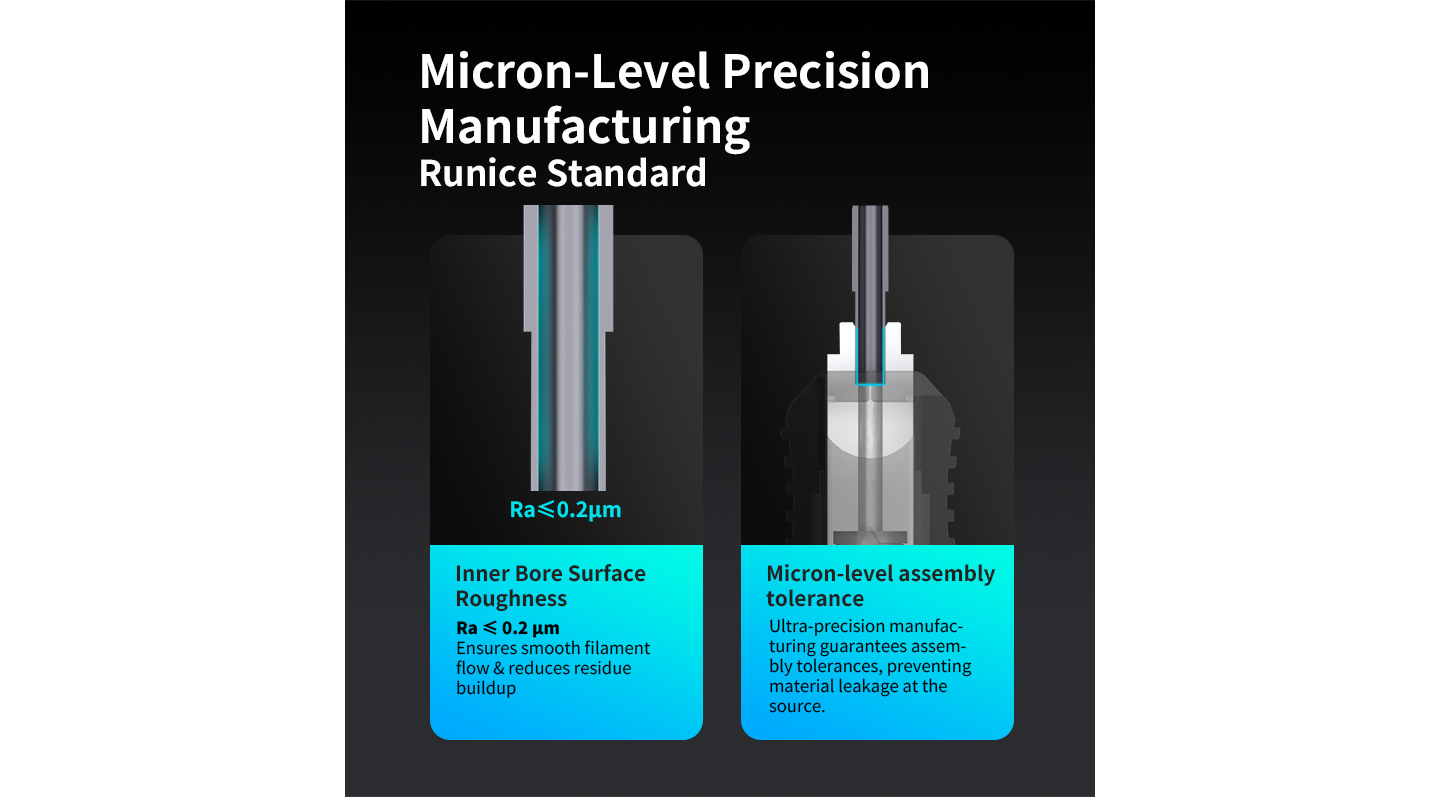

With the included 0.4mm nozzle, the Conch achieves a flow rate of up to 30 mm³/s with PLA — around a 20% reduction in print time on long jobs, without sacrificing surface quality. An inner bore surface roughness of ≤Ra 0.2μm ensures ultra-smooth filament flow with minimal residue buildup, keeping extrusion consistent print after print.

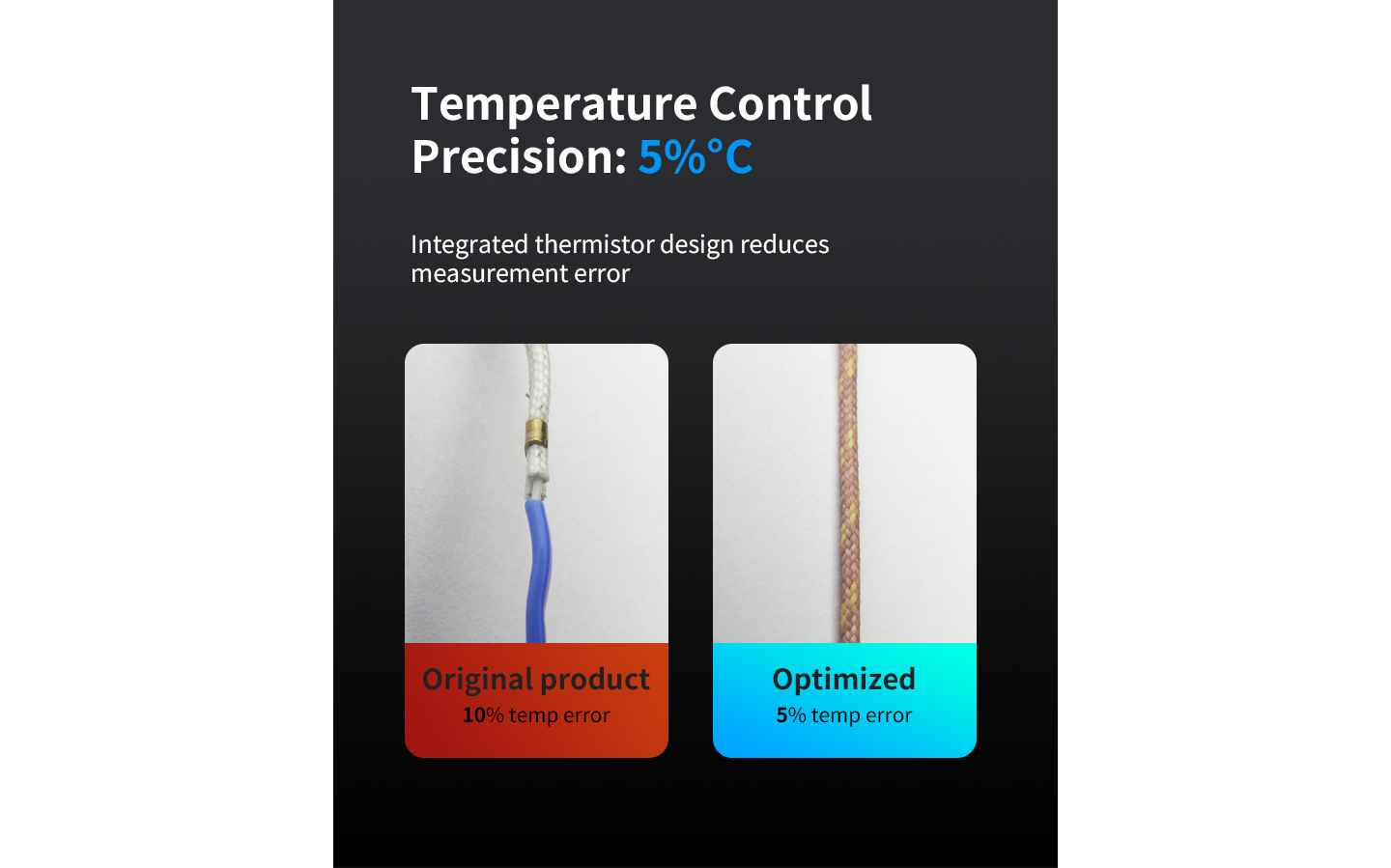

The integrated thermistor design and nickel-plated copper alloy heater block deliver temperature control precision within ±5°C — roughly half the error of standard designs — reducing the risk of clogs, under-extrusion, and stringing from inconsistent nozzle temperature.

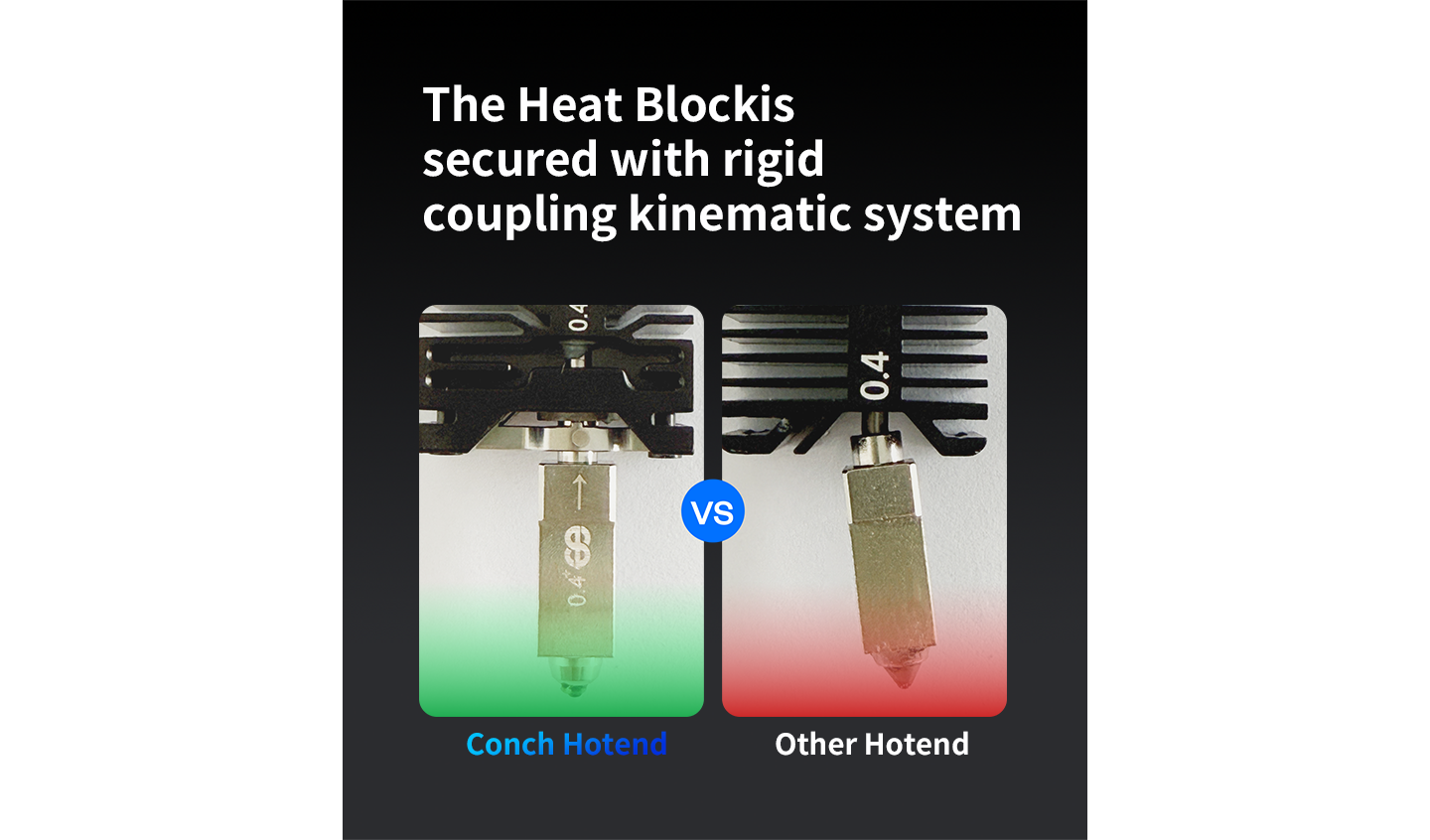

A patented rigid coupling system locks the heater block securely in place and protects the delicate heat break from torque during a crash. Unlike standard hotends that can shift or twist under impact, this design absorbs and redirects collision forces, reducing damage to the core components if the toolhead ever hits something during a print.

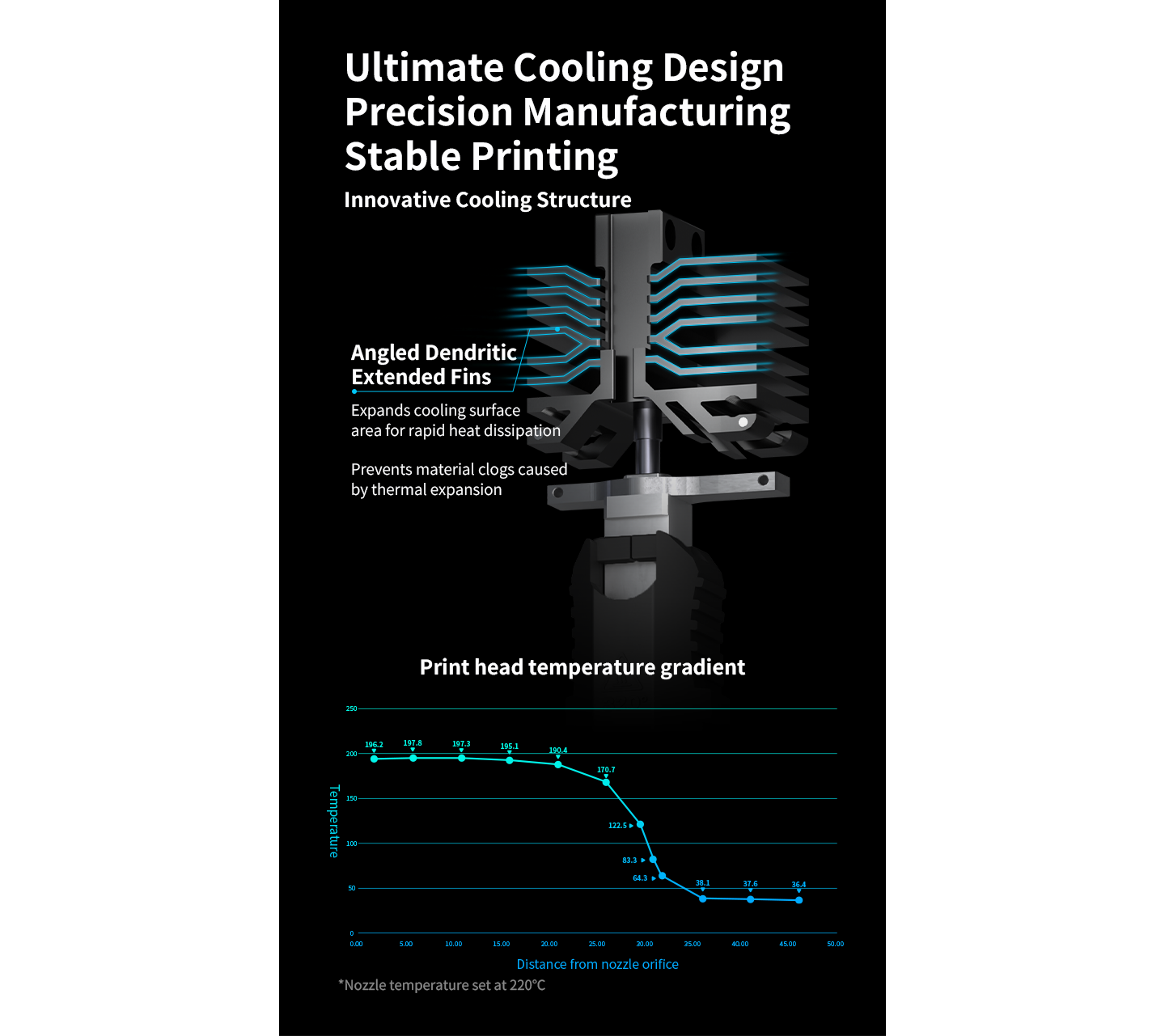

Inclined dendritic cooling fins increase the effective cooling surface area, dissipating heat faster than the stock design — supporting more stable, higher-temperature printing without heat creep into the cold zone.

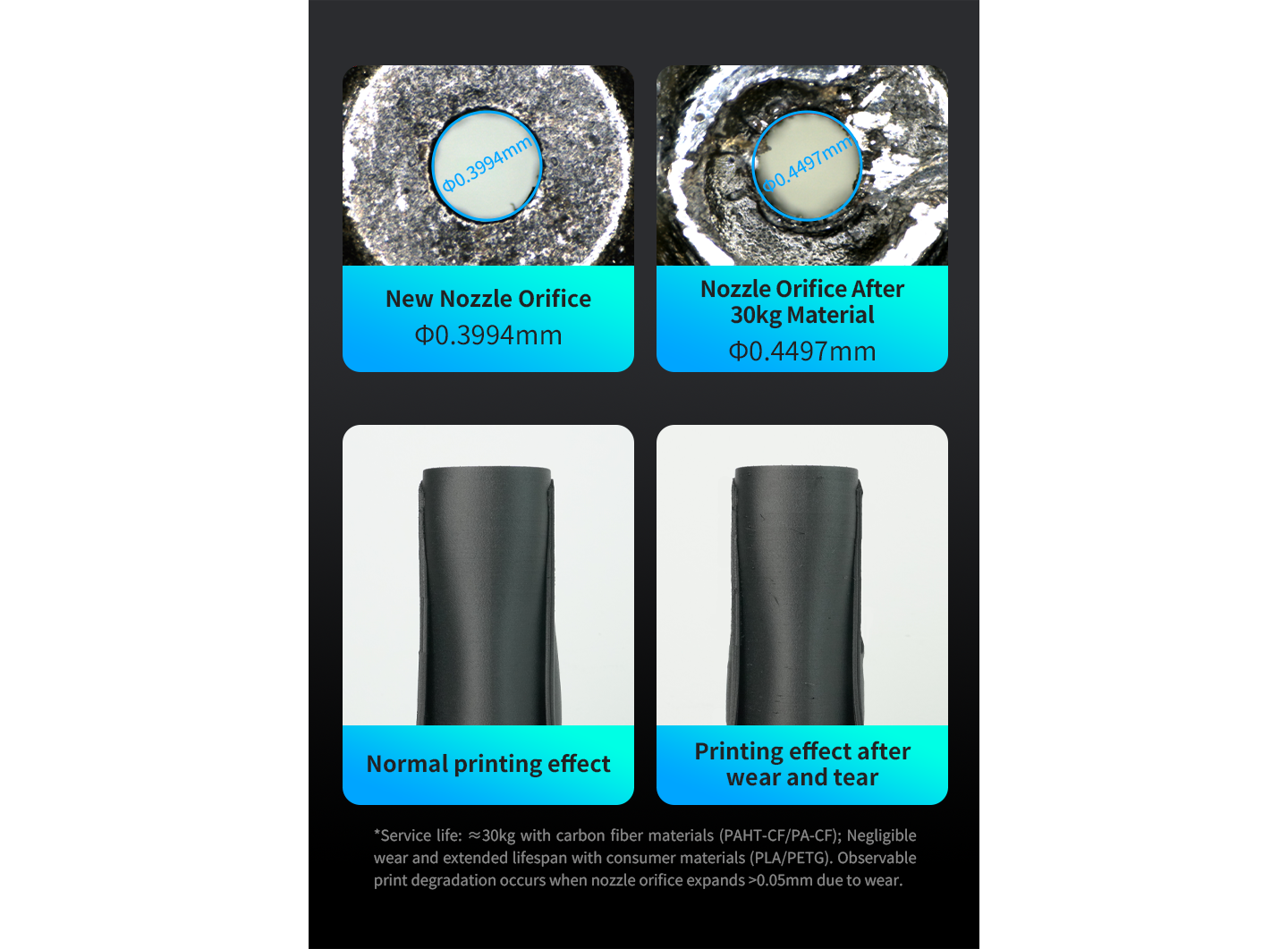

The EndCoat™ coating on the heat break and compatible nozzles significantly boosts surface hardness, delivering up to 2.5× longer service life than standard hardened steel when printing carbon fibre, glass fibre, wood-filled, and metal-filled composites.
Designed as a drop-in fit for the QIDI Plus4 — matches the original mounting points, wiring, and dimensions with no modifications needed. Not compatible with other QIDI models or non-Plus4 printers.

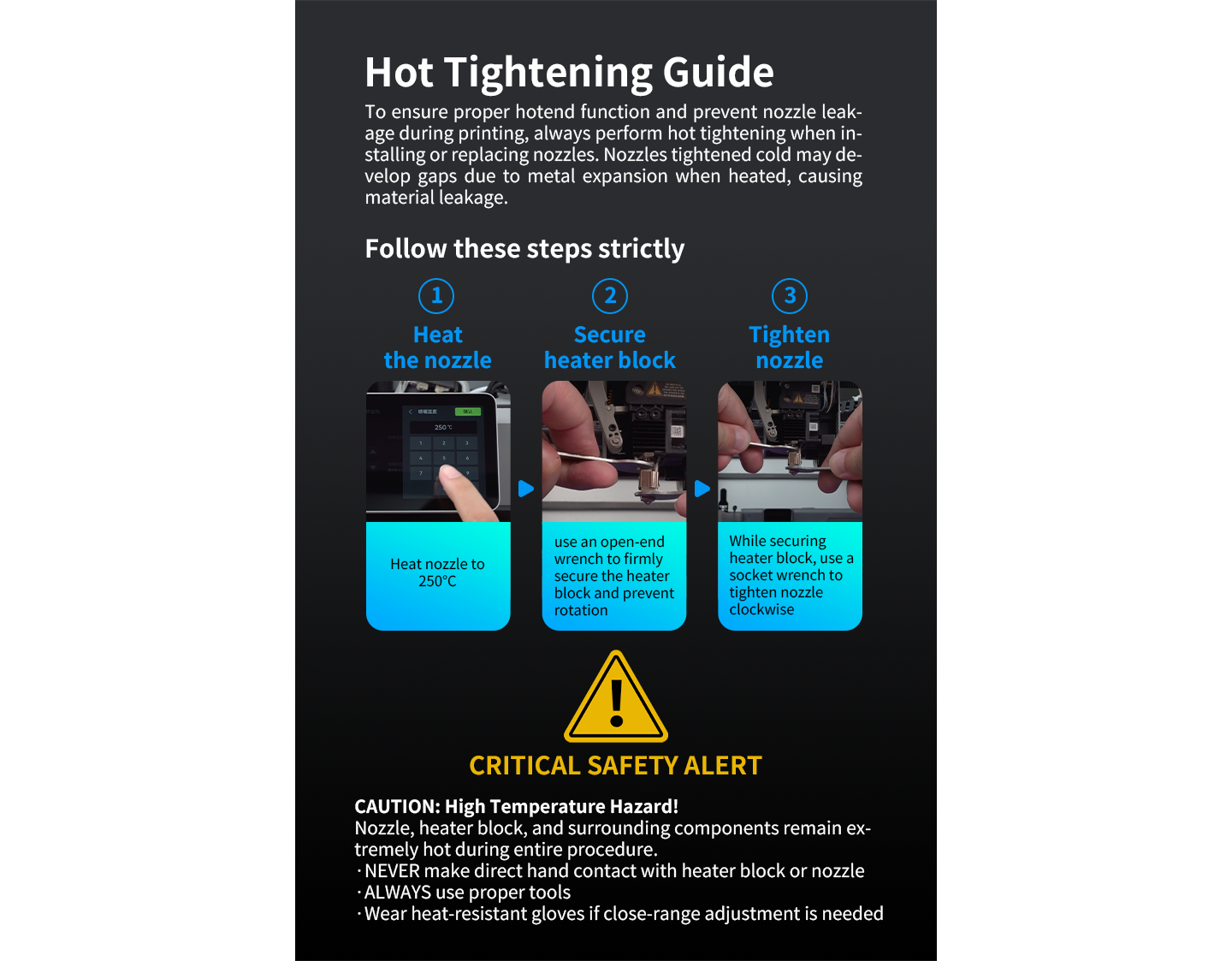

Always perform hot tightening when installing or replacing nozzles. Nozzles tightened cold can develop gaps as the metal expands during heating, causing filament leakage. To hot-tighten: heat the nozzle to approximately 250°C, secure the heater block with a wrench, then gently tighten the nozzle clockwise. This 30-second step ensures a leak-free seal.
Caution: the nozzle, heater block, and surrounding components remain extremely hot throughout installation. Never make direct hand contact — always use proper tools and heat-resistant gloves if close-range adjustment is needed.
PLA, ABS, PETG, TPU, and industrial composite materials including carbon fibre, glass fibre, steel-filled, and wood-filled filaments.

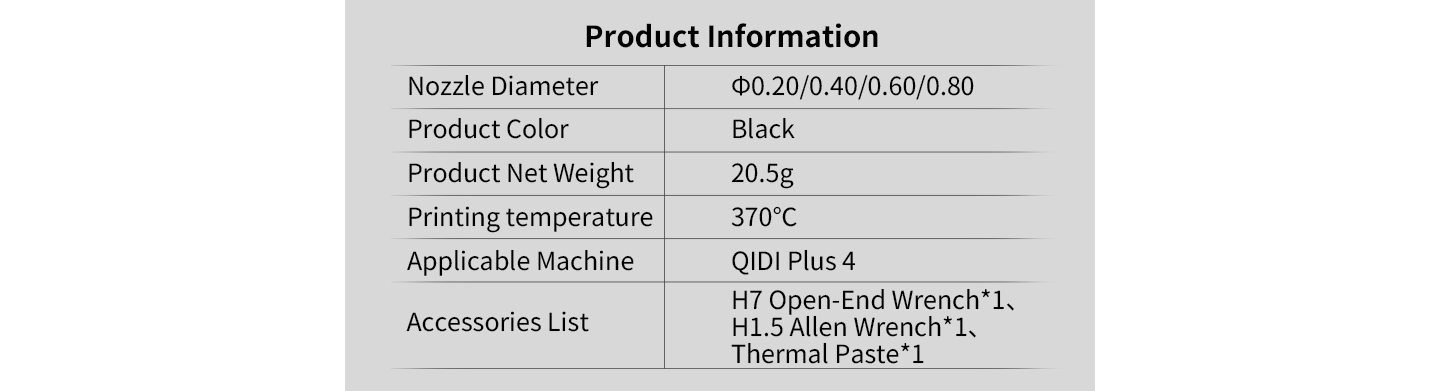

Heat break: EndCoat™ coated, full-metal (patent-pending)
Heater block: Nickel-plated copper alloy
Clamp: Titanium alloy
Coupling: Patented rigid kinematic system
Flow channel roughness: Max flow rate: Up to 30 mm³/s (0.4mm, PLA)
Max temperature: 370°C
Temperature control precision: ±5°C
Nozzle interface: Standard E3D V6 — replaceable
Available sizes: 0.2mm, 0.4mm, 0.6mm, 0.8mm
| Weight | .1 kg |
|---|---|

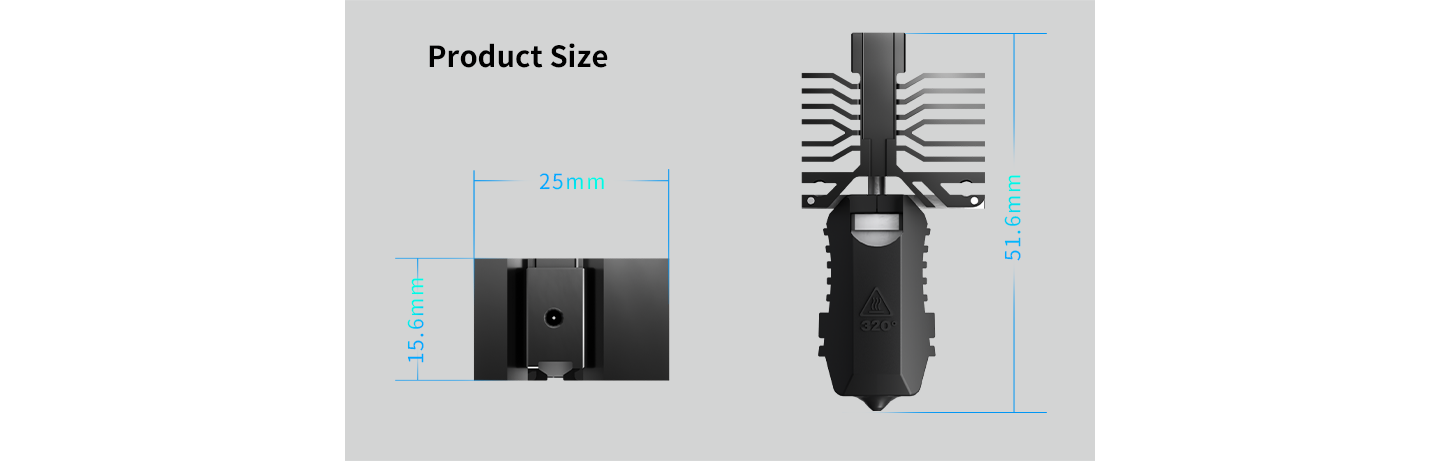

| Dimensions | 5 × 5 × 5 cm |
| Brand[For 3D Printer Consumables- (Required)] | Unbranded |
| Variant | 0.4mm, 0.6mm |
