Description

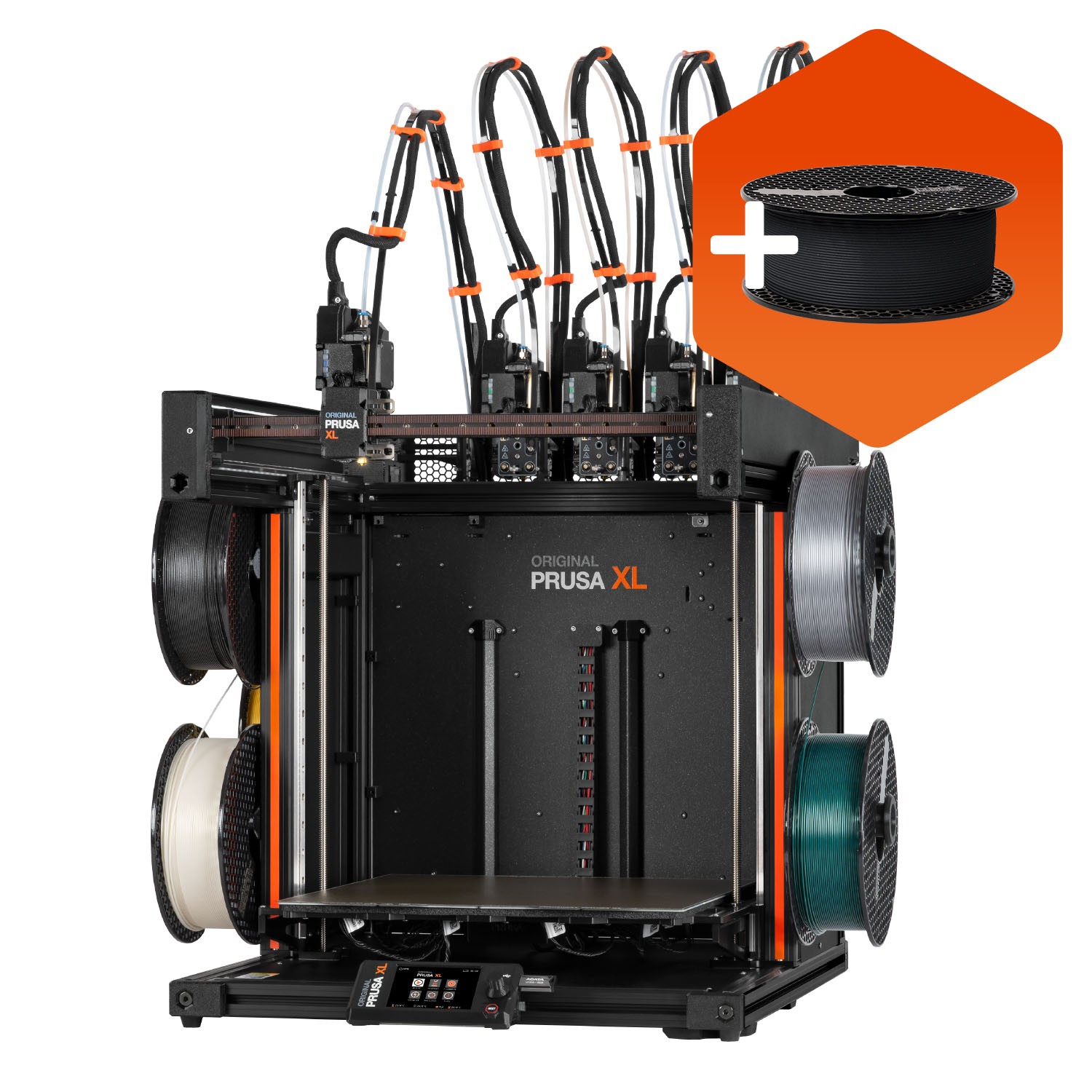

Original Prusa XL — Large-Format Multi-Material Toolchanger

The Original Prusa XL is the most advanced desktop 3D printer on the market — a large-format CoreXY with a 360 × 360 × 360 mm build volume and a revolutionary toolchanging system that supports up to 5 independent toolheads. Each toolhead is a complete extruder and hotend, swapped in and out during printing for true multi-material and multi-colour output with zero purge waste using wipe-to-infill technology.

Assembled and pre-calibrated from the factory, the Prusa XL is ready to print out of the box. Start with a single toolhead and upgrade to 2 or 5 as your needs grow — the modular architecture makes every configuration a stepping stone, not a dead end.

Up to 5 Independent Toolheads

The XL’s toolchanger is what sets it apart from every other desktop printer. Each toolhead is a complete, independent printing system — its own Nextruder, its own nozzle, its own filament path. During a print, the active toolhead parks and a new one picks up seamlessly, with no filament mixing and no purge tower waste.

This means genuine multi-material printing — combine PLA with TPU, PETG with PVA soluble support, or print in 5 colours simultaneously. Unlike single-nozzle MMU systems that purge between colours, the XL’s toolchanger eliminates purge waste entirely using wipe-to-infill, saving material and time on every multi-colour print.

16-Segment Heatbed

The XL’s build plate is divided into 16 independently controlled heating segments. Only the segments under your print are heated — the rest stay off. This saves energy, reduces heat-up time, and eliminates the thermal warping that full-surface heatbeds cause on large build plates. For small prints on a large bed, you’re not heating 360 × 360 mm of surface for a part that only occupies one corner.

Nextruder with Load Cell

Every toolhead uses Prusa’s Nextruder — a planetary gearbox extruder with a built-in load cell sensor for fully automatic first layer calibration. The load cell physically measures the nozzle-to-bed distance with micron precision, eliminating manual Z offset adjustment and ensuring perfect first layers on every print, with every toolhead, every time.

The Nextruder also supports quick-swap nozzles — change nozzle sizes in seconds without tools or hot tightening.

Speed & Precision

Input Shaper and Pressure Advance technologies deliver fast, clean printing. Input Shaper compensates for frame vibration at speed, eliminating ringing and ghosting artifacts. Pressure Advance controls filament flow during acceleration and deceleration, producing sharp corners and consistent extrusion at elevated speeds.

Connectivity & Remote Management

Built-in Wi-Fi and Ethernet for network printing, Prusa Connect integration for remote monitoring and print management, built-in camera for remote observation and time-lapse recording, and USB for local file transfer. Manage your XL from anywhere on your network or remotely via Prusa Connect.

Upgradeable Architecture

Start with 1 Toolhead

The single-toolhead XL gives you the full 360 × 360 × 360 mm build volume, CoreXY motion system, segmented heatbed, and Nextruder — a premium large-format single-material printer with the option to expand later.

Upgrade to 2 or 5 Toolheads

Add additional toolheads as your needs grow. Each toolhead upgrade kit adds a complete Nextruder assembly and docking station.

Optional Enclosure

An optional enclosure add-on enables printing with temperature-sensitive engineering materials like ABS, ASA, PC, and PA in a controlled chamber environment.

Supported Materials

PLA, PETG, TPU, TPE, PVA, ABS, ASA, PC, PA, HIPS, and carbon fibre composites. Max nozzle temperature 300°C (upgradeable with HT Hotend). Max bed temperature 120°C.

Specifications

Architecture: CoreXY
Build volume: 360 × 360 × 360 mm
Toolheads: 1, 2, or 5 (upgradeable)
Heatbed: 16-segment independently controlled
Extruder: Nextruder with planetary gearbox and load cell
Nozzle: Quick-swap, hot-swappable
Max nozzle temperature: 300°C (upgradeable)
Max bed temperature: 120°C
Layer height: 0.05–0.30 mm
Connectivity: Wi-Fi, Ethernet, USB
Camera: Built-in
Printer dimensions: 700 × 900 × 720 mm
Weight: 25.3 kg
Setup: Assembled and pre-calibrated
Designed and manufactured in the EU

Open Ecosystem

PrusaSlicer with factory-tuned profiles, Prusa Connect remote management, open-source firmware, and full modder support. No walled garden, no locked firmware, no forced filament vendor. Every part is screwed, not glued — designed for long-term repairability and upgradeability.
